Vibration Meter

Department: Department of Industrial and Production Engineering
Concerned Person:
Name Mr. RAVI KUMAR
Technical Assistant SG-II
Department of Industrial and Production Engineering
Email ID ravik@nitj.ac.in
Mobile No. 8360275655
Location:

Room No. 109, Work Study & Ergonomics Lab

Available For:

For Internal Users only

Major Specifications:

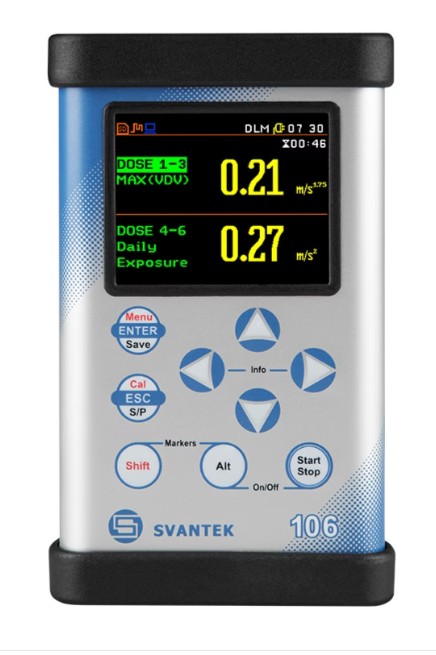

SV 106D – Six Channel Human Vibration Meter

Category Specifications
Applications Hand-arm & Whole-body vibration
Channels 6
Interfaces USB-C, I/O
Display / Keys 9 buttons
Memory 32 GB
Battery AA (12–16 h)
Temp. Range -10 °C to 50 °C
Humidity ≤ 90% RH (non-condensed)
Weight 390 g
Size 140 × 83 × 33 mm

Vibration Measurement

Parameter Details
Standards ISO 8041, 2631, 5349 & related UNI/EN versions
Sensor Type IEPE / MEMS
Input 2 × LEMO 5-pin
Range Transducer dependent
Freq. Range 0.1 – 2000 Hz
Profiles / Ch. 2 (Acceleration, Velocity)
Filters Wd, Wk, Wm, Wb, Wc, Wj, Wg, Wf, Wh, Wp, HP, KB, Vel3
Analysis 1/1 & 1/3 Octave (optional)
WAV Recording Optional
Research Potential:

Yes
