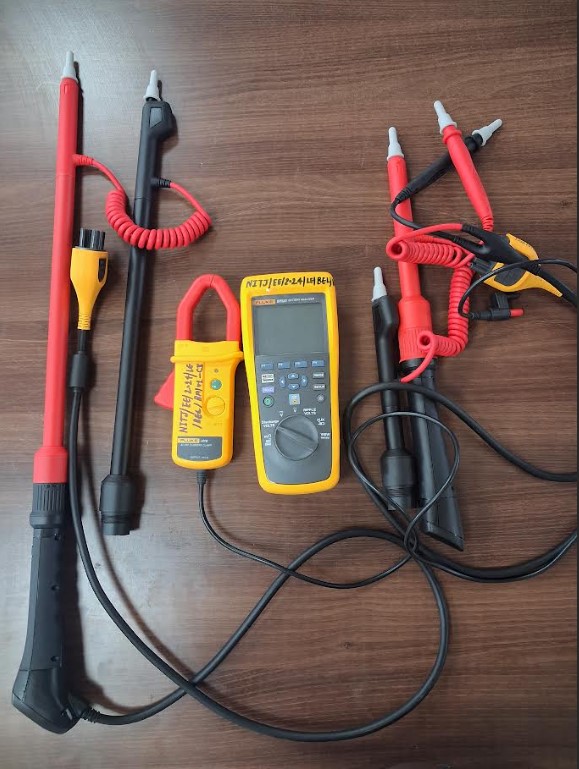

Battery Analyser

Department: Department of Electrical Engineering

Concerned Person:

Name	Mr. PANKAJ KUMAR MAURYA Technical Assistant Department of Electrical Engineering
Email ID	pankajkm@nitj.ac.in
Mobile No.	7897642841

Location:

Basic Electrical Engineering Lab EED

Available For:

For Internal Users only

Major Specifications:

Resistance measurement range- 3 mΩ (Max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (Max. display 3.100 Ω, resolution 1 mΩ), 4 ranges
Accuracy: ±0.8 % rdg. ±6 dgt. (3 mΩ range: ±1.0 % rdg. ±8 dgt.)
Testing source frequency: 1 kHz ±30 Hz, testing current: 150 mA (3m/30 mΩ range), 15 mA (300 mΩ range), 1.5 mA (3 Ω range), Open-circut Voltage: 5 V peak

Voltage measurement range- ± 6 V (Max. display ±6.000 V, resolution: 1 mV) to ± 60 V (Max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg. ±6 dgt.

Absolute max. input voltage- 60 V DC max. (No AC input)

Sampling rate- 1 time/s (at resistance, voltage, and temperature measurement combination
