| Name |
Dr. SHIVAM VERMA Technical Officer Central Workshop |
| Email ID | shivamv@nitj.ac.in |
| Mobile No. | 9643379707 |
New IIC Building, Central Workshop
For Internal Users only

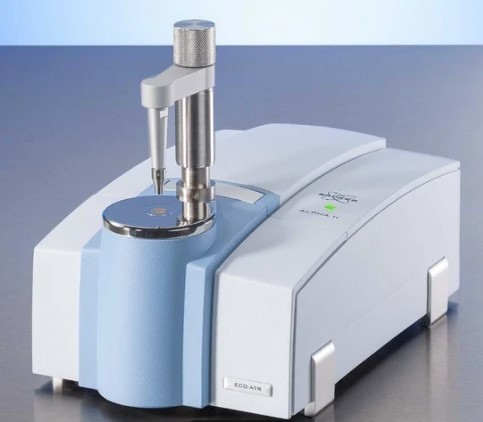

Description: Bruker ALPHA II FTIR Spectrometer is a compact Fourier Transform Infrared (FTIR) spectrometer for routine material analysis and quality control. It delivers reliable, high-quality spectral data and supports multiple sampling methods through interchangeable modules. The system includes the ALPHA II unit, integrated ATR module, and OPUS software. It can be operated via USB connection or as a standalone device.
Number of FTIR spectrometer available @ IIC: 01
Specifications:
|
Detector and Interferometer |
Temperature-controlled DLaTGS-detector; RockSolid™ cube corner interferometer |
|
Spectral Range |
350 – 8,000 cm-1, with standard KBr beam splitter; 500 – 6,000 cm-1, option: “High Humidity” ZnSe |
|
Signal-to-Noise Ratio |
Typically, > 55,000:1 (1 min measurement time, spectral resolution 4 cm-1) |
|
Accuracy and Precision |
<0.05 cm-1@ 1576 cm-1, <0.0005 cm-1@ 1576 cm-1 |
|
Dimensions |
With Panel-PC: ~ 287 x 340 x 360 mm without Panel-PC: ~ 208 x 330 x 260 mm |
For UG/PG students
