| Name |
Mr. MARADANI SIMHACHALAM Technical Assistant Department of Industrial and Production Engineering |
| Email ID | maradanis@nitj.ac.in |
| Mobile No. | 8639185650 |
Room No. 106, First Floor, Workshop Extension
For Internal Users only
|

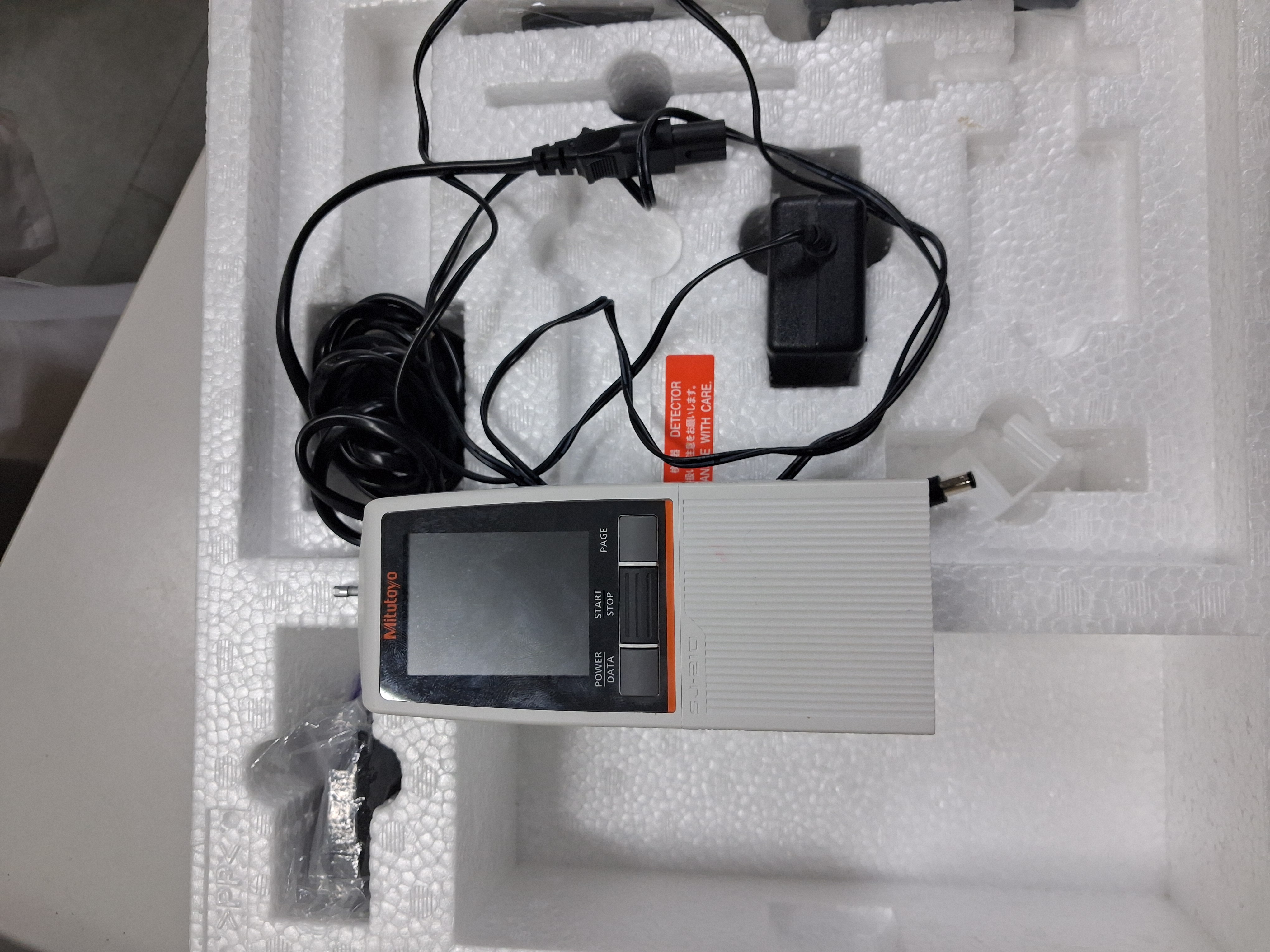

Item |
Specification |
|
Measurement Parameters |
Ra, Rz, Ry, Rq, Rt, Rv, Rp, Rsk, Rku, RSm, Rc, etc. |
|
Measuring Range (Z-Axis) |
Up to 360 µm |
|
Resolution (Selectable) |
0.02 µm / 0.006 µm / 0.002 µm |
|
Cut-off Lengths (λc) |
0.08 / 0.25 / 0.8 / 2.5 mm |
|
Evaluation Length |
Up to 10 sampling lengths (max. ~16 mm) |
|
Measuring Speed |
0.25 / 0.5 / 0.75 mm/s |
|
Return Speed |
Approx. 1 mm/s |
|
Stylus Tip |
2 µm radius, 60° (standard); optional 5 µm, 90° tip available |
|
Skid Force |
< 400 mN |
Yes
