| Name |
Mr. MARADANI SIMHACHALAM Technical Assistant Department of Industrial and Production Engineering |
| Email ID | maradanis@nitj.ac.in |
| Mobile No. | 08639185650 |
Room No. WE-106, First Floor, New Workshop
For Internal Users only
|
Parameter |
Specification |
|
Microscope Type |

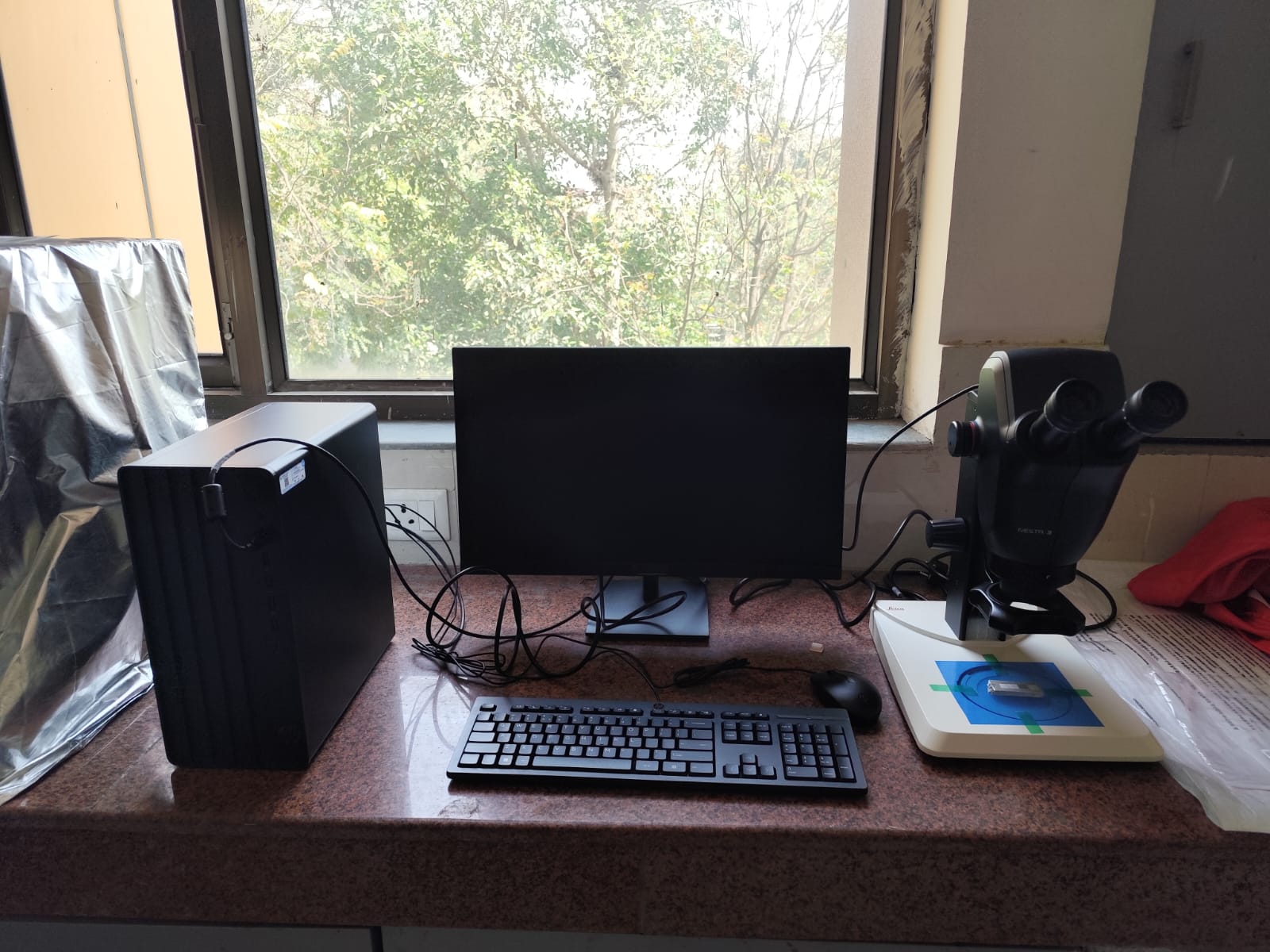

Trinocular stereo zoom microscope |
|
Eyepiece |
10X, 23 mm FOV |
|
Objective Lenses |
Apochromatic, 0.5X & 1.6X |
|
Numerical Aperture |
≥ 0.3 |
|
Working Distance |
120 mm (±10%) |
|
Zoom Ratio |
10:1 |
|
Magnification Range |
1X – 350X |
|
Stage |
Transmitted light base |
|
Illumination |
LED (transmitted & incident) |
|
Camera |
Integrated CMOS, ≥10 MP |
|
Software |
Real-time imaging & measurement |
YES
