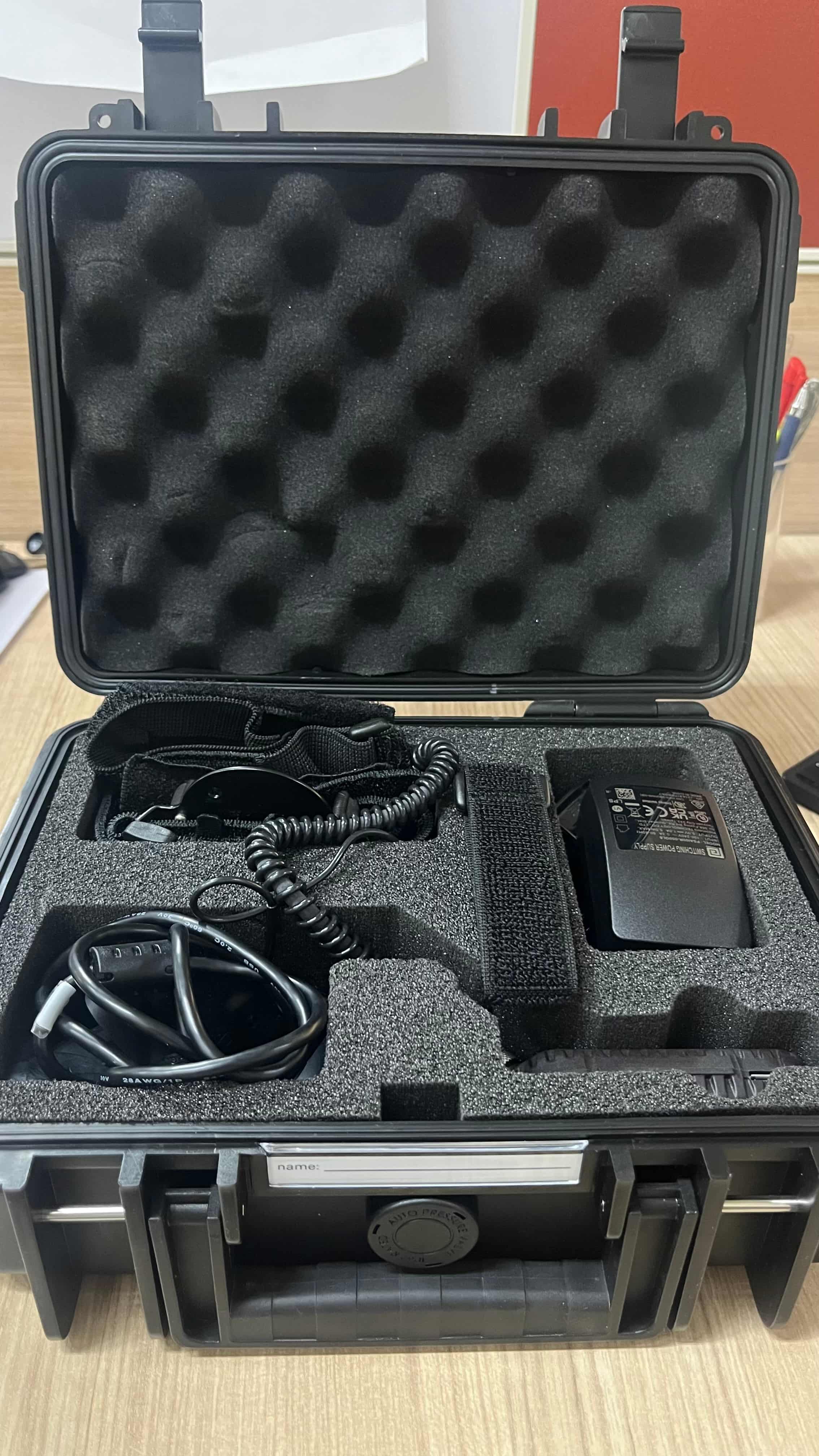

Hand Arm Vibration Meter

Department: Department of Industrial and Production Engineering
Concerned Person:
Name Mr. RAVI KUMAR
Technical Assistant SG-II
Department of Industrial and Production Engineering
Email ID ravik@nitj.ac.in
Mobile No. 7508174887
Location:

Room No. 109, Ground Floor, IPE department

Available For:

For Internal Users only

Major Specifications:
Specification Details
Standards ISO 8041:2021, ISO 5349-1/2:2001
Measurement Range 0.2 m/s² RMS to 2000 m/s² Peak
Frequency Range 0.1 Hz – 2 kHz
Meter Modes RMS, Vector, Peak, A(8), ELV, EAV
Data Storage 8 GB memory
Display OLED, 128 × 64 px
Interface USB 2.0
Battery Life >24 hours
Operating Temperature -10 °C to 50 °C
Dimensions 88 × 49.5 × 19.2 mm
Weight 150–160 g
Research Potential:

Yes
