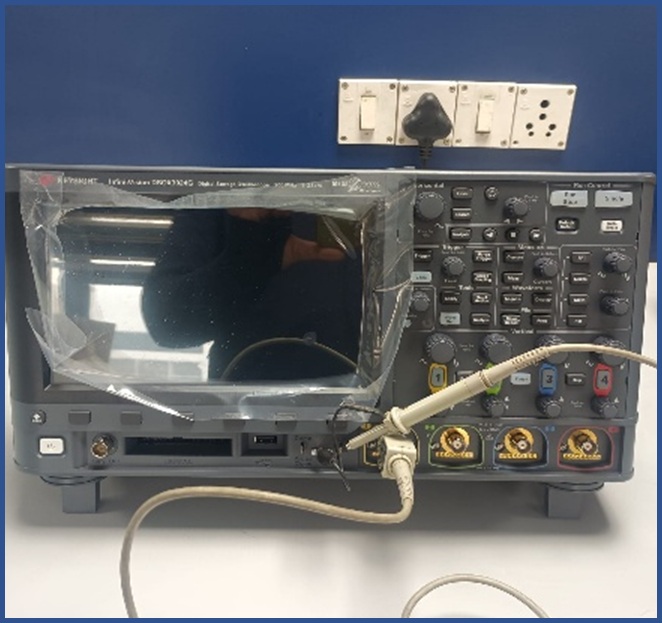

Digital Storage Oscilloscope

Department: Department of Electronics and Communication Engineering

Concerned Person:

Name	Mr. KULDEEP SINGH Senior Technical Assistant Department of Electronics and Communication Engineering
Email ID	kuldeeps@nitj.ac.in
Mobile No.	9878954203

Location:

Communication Lab ECE building

Available For:

For Internal Users only

Major Specifications:

· Input Channels: Analog

· Number of Analog Channels: 4

· Sampling Rate: 2.5 GS/s per channel (simultaneous)

· Bandwidth: 200 MHz

· Bandwidth Upgradeable: Yes

· Operating System: Non-Windows

· Display: Color TFT, minimum 8.5-inch screen

· Time Base Accuracy: 2 ppm

Research Potential:

Suitable for research applications in electronics, embedded systems, communication systems, and optical communication experiments.
It can be used for waveform analysis, modulation studies, signal characterization, microcontroller/FPGA debugging, and moderate-frequency RF measurements up to 200 MHz.
